Fume Dry Scrubber
Axis Aire
Applications
– Specifically designed for laboratories situated in urban areas
– Meeting pollution control requirements
– Prevention of re-entry of contaminants in the laboratory
– Effective option to a wet scrubber
– Can easily fit into existing ducted fume extraction system with minimal downtime

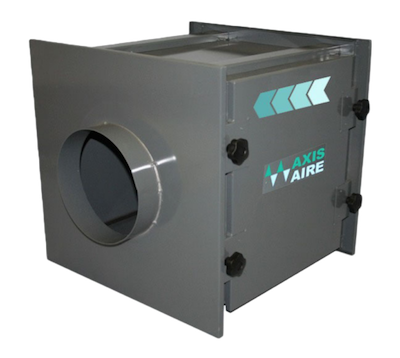

Leak proof uPVC filter panel enclosure with service hatch and round duct inlet/outlet.
Suitable for filtration of toxic, acidic and nuisance fume from laboratory or process fume extraction systems.
Packaged with different filters for removal of chemicals and particles.
Minimal loading on existing blower system with typical 1′-1.5′′ pressure drop.
Activated carbon filters are not recommended for use where very large quantities of contaminates or highly toxic substances are produced, such as in acid digestions or evaporation of solvents to dryness.
The recommended filter is the main single layer filter to be used for the application. In cases where more than one chemical family is involved it may be possible to use a multi-layered filter. High volume of flammables fume are not recommended due to static spark risk.
